A full range of capacitive sensors from all brands are available
Original and YEHE OEM sensors
Two year warranty
Capacitive Sensing Principle:

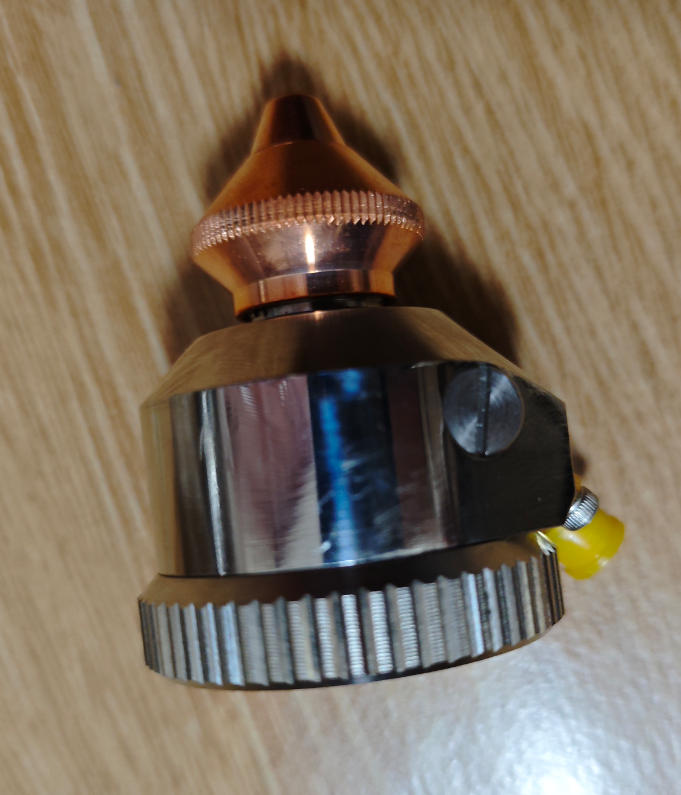

The system turns the cutting zone into a live electrical circuit. The copper laser nozzle acts as one plate of a capacitor, and the grounded metal sheet acts as the second plate. The air gap between them serves as the dielectric insulator.
Real-Time Z-Axis Control:
As the nozzle moves over an uneven surface, the air gap changes, which instantly alters the electrical capacitance. The sensor reads these micro-fluctuations and commands the Z-axis servo motor to move the head up or down in milliseconds.
Focal Point Consistency:
By locking the physical distance (usually between 0.5mm and 1.5mm), the sensor ensures the laser beam's focal point remains exactly where it needs to be—either on the surface or buried at a specific depth inside the metal.
Collision Avoidance:
If a previously cut piece of metal tips upward, the sensor detects a sudden, massive spike in capacitance as the nozzle approaches it. It triggers an immediate emergency retract and stops the machine to prevent the expensive optical head from crashing.
| Parameter | Standard Height Sensors | YEHE Industrial Laser Sensors |
| Response Time | Moderate ($\sim 2\text{--}5\text{ ms}$) | Ultra-fast ($< 1\text{ ms}$) |
| Thermal Drift Resistance | Prone to accuracy loss over long jobs | Temperature-compensated signal processing |
| Edge Sensitivity | Can misread near sheet boundaries | Stabilized signal filtering for complex contours |
| Noisy Environment Handling | Sensitive to static & plasma arcs | High EMI/RFI dielectric shielding |
