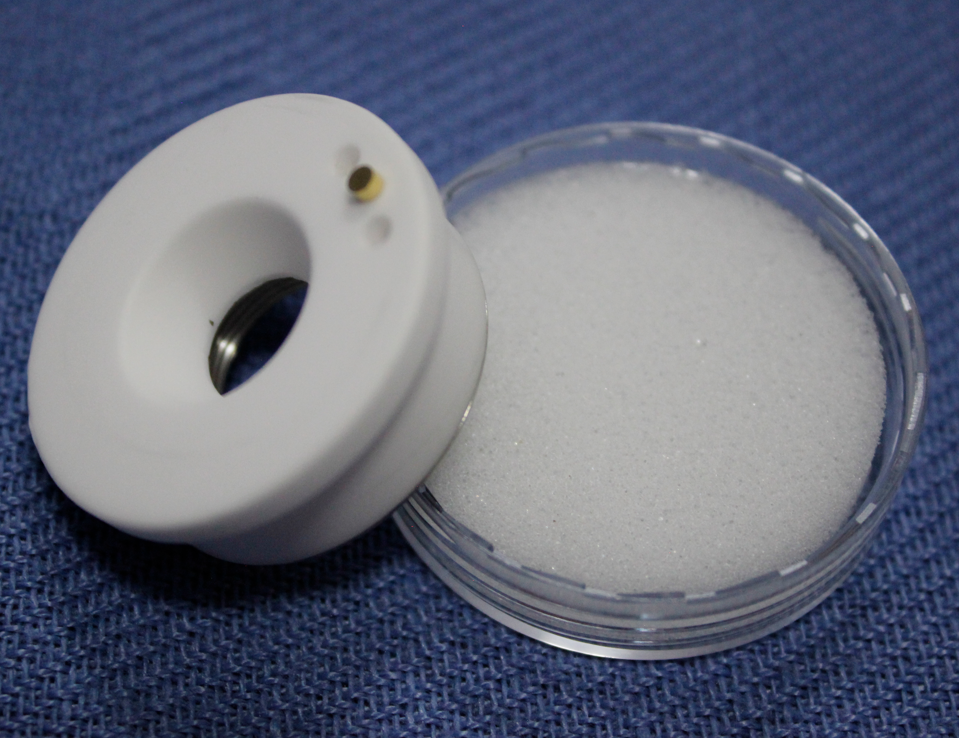

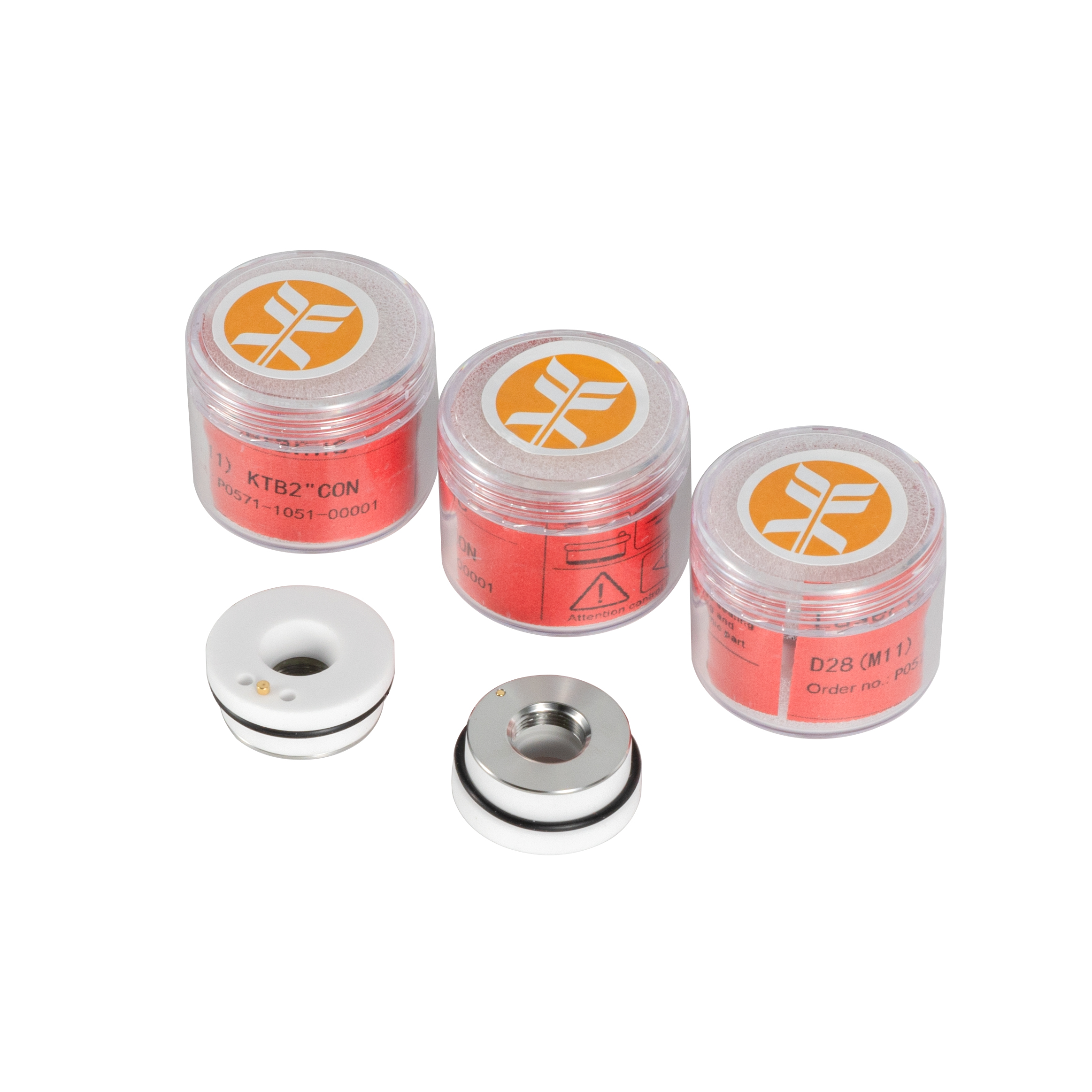

In laser cutting and welding systems, the laser ceramic ring (or ceramic body) acts as a critical electrical insulator and structural mount located directly inside the laser cutting head, positioned between the nozzle and the capacitive sensor.
YEHE ceramic rings are made with high-end materials and advanced manufacturing processes, making your cutting and welding work more stable.
Category： Laser Ceramics
Keywords：Laser Ceramics Ring
l Capacitive Signal Insulation:
Electrically isolates the cutting nozzle from the rest of the laser head. This enables the capacitive sensor to accurately measure the micro-distance between the nozzle tip and the metal workpiece for precise height tracking.
l Thermal Protection:
Shielding the internal electronics and optical components of the cutting head from the extreme heat reflected off the laser cutting zone.
l Mechanical Alignment & Support:
Provides a rigid, high-precision mount to keep the laser nozzle perfectly aligned with the laser beam path.
l Break-Away Protection (Crash Defense):
Acts as a intentional structural "weak point." If the cutting head collides with a tipped-up part on the cutting bed, the ceramic ring breaks cleanly to absorb the impact—preventing catastrophic and costly damage to the internal optics and sensor mechanism.
1.High Thermal Stability & Resistance:
Advanced technical ceramics (like alumina or zirconia) can withstand extreme temperatures exceeding 1,000°C without warping, melting, or losing structural integrity under high laser power.
2.Exceptional Electrical Insulation:
Provides absolute isolation for the capacitive height-sensing signal, preventing interference or electrical noise so the laser head maintains a stable, sub-millimeter standoff distance.
3.Cost-Effective "Fuse" Mechanism:
Designed to snap during a physical crash into a tipped-up workpiece, sacrificing a low-cost consumable component to protect fragile, expensive internal optics and capacitive sensors ($2,000+).

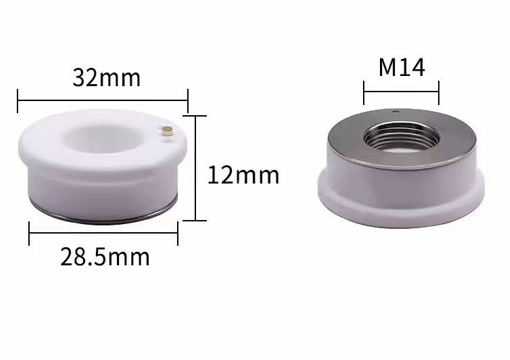

4.High Dimensional Accuracy:
Precision-machined dimensions ensure the nozzle stays centered relative to the focused laser beam, maintaining clean cut quality and consistent gas assist flow.
5.Corrosion & Wear Resistance:
Impervious to molten metal spatter, slag, and aggressive process gases (like high-pressure oxygen or nitrogen), ensuring a longer operational lifespan than plastic or basic metal alternatives.
